The Challenge

An analogue system that couldn't deter.

White Rose House had experienced repeated incidents of individuals remaining in the car park for extended periods. Staff and visitors raised safeguarding concerns, and confidence in the overall security of the site began to decline. The existing CCTV infrastructure was ageing and analogue. Image quality was limited, coverage was inconsistent and — crucially — the system could record events but could not deter them. NHS Property Services required a platform that would actively discourage unwanted behaviour, stand up to the evidential burden of a public estate, and remain fully compliant with UK GDPR and the Data Protection Act 2018.

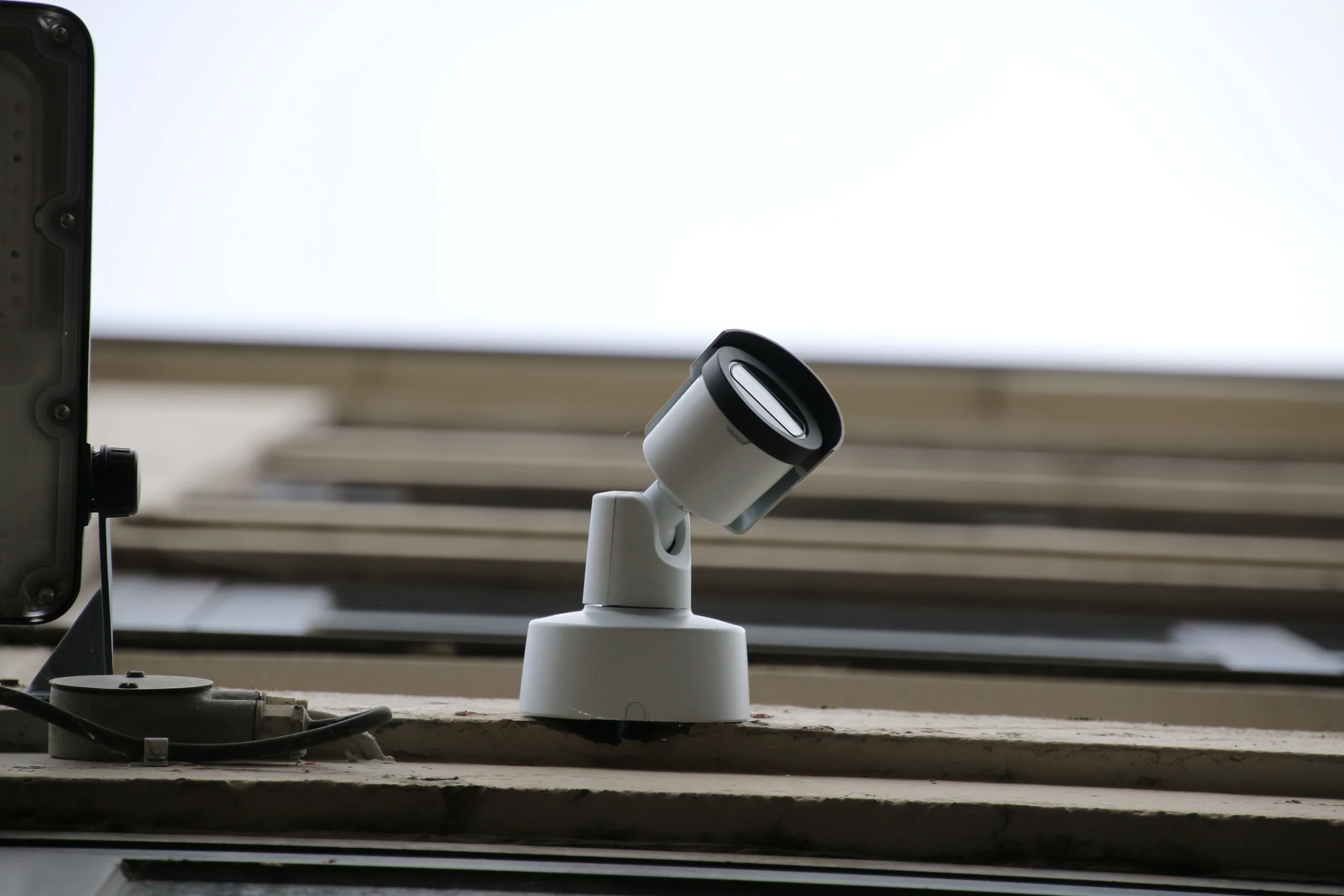

New CCTV infrastructure installed at White Rose House

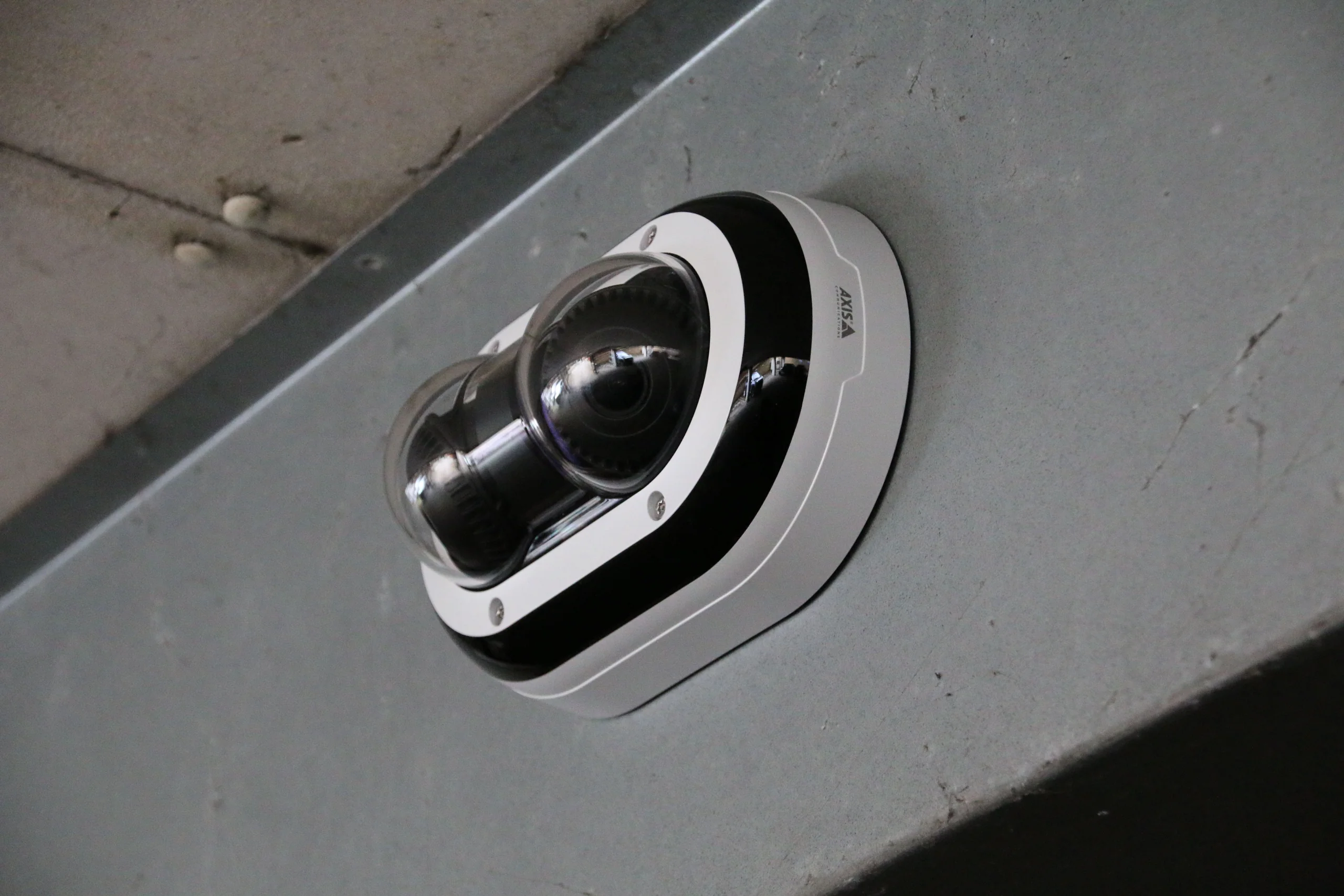

Axis CCTV installation works — Turnkey upgrade with Deep Learning analytics

The Solution

A turnkey IP upgrade, designed around the site.

Photuris produced a full turnkey design and quotation, drawing on our long-standing experience in healthcare estates and our Axis Solution Partner status. Every device was selected for its application — balancing coverage, image quality, pixel density, DORI performance and cost.

High-definition IP surveillance to BS EN 62676
Coverage uplift across the car park, perimeter & entry points
Deep-learning analytics with staged active deterrence
LED floodlighting for safety & night-time image quality

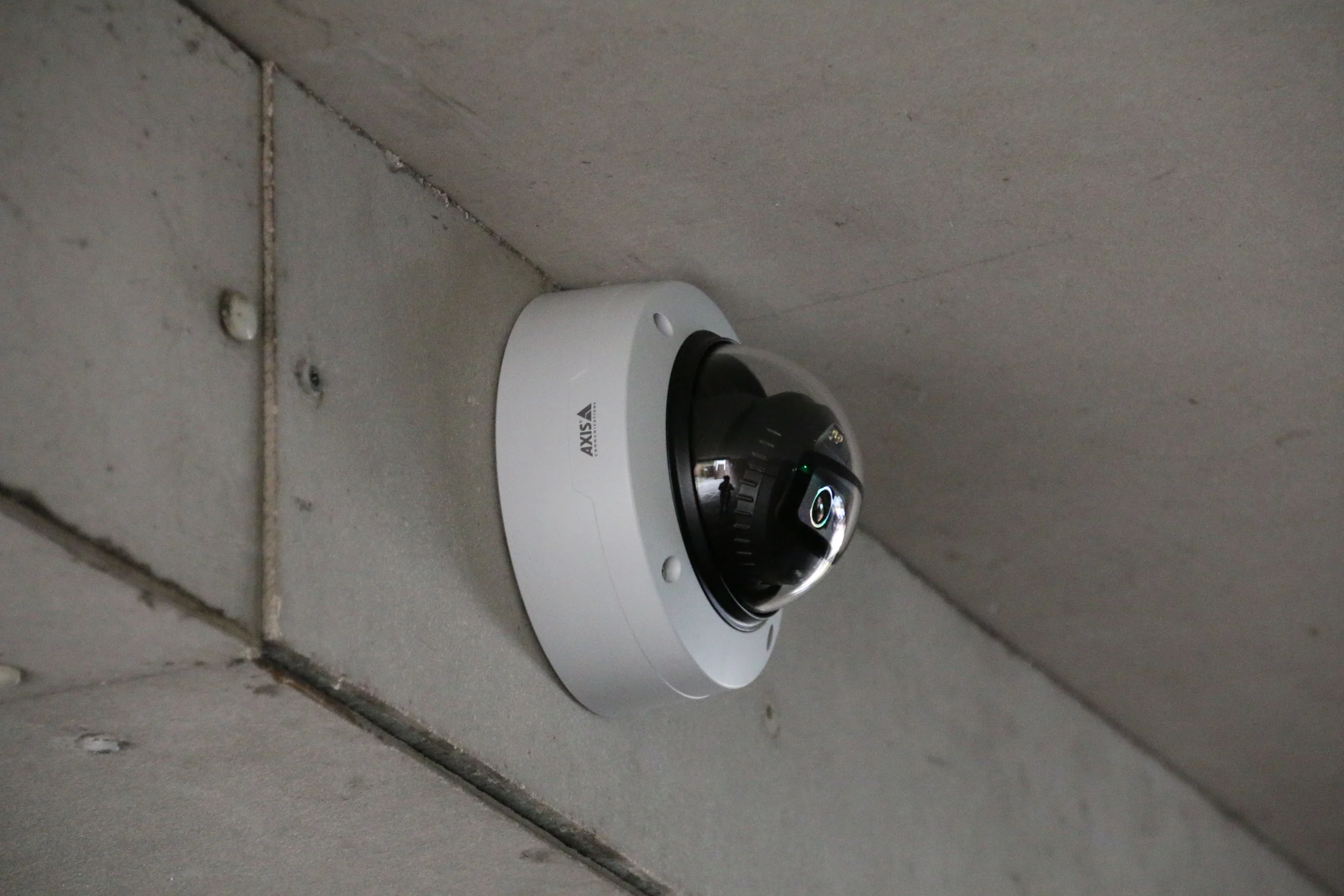

Turnkey CCTV installation at White Rose House

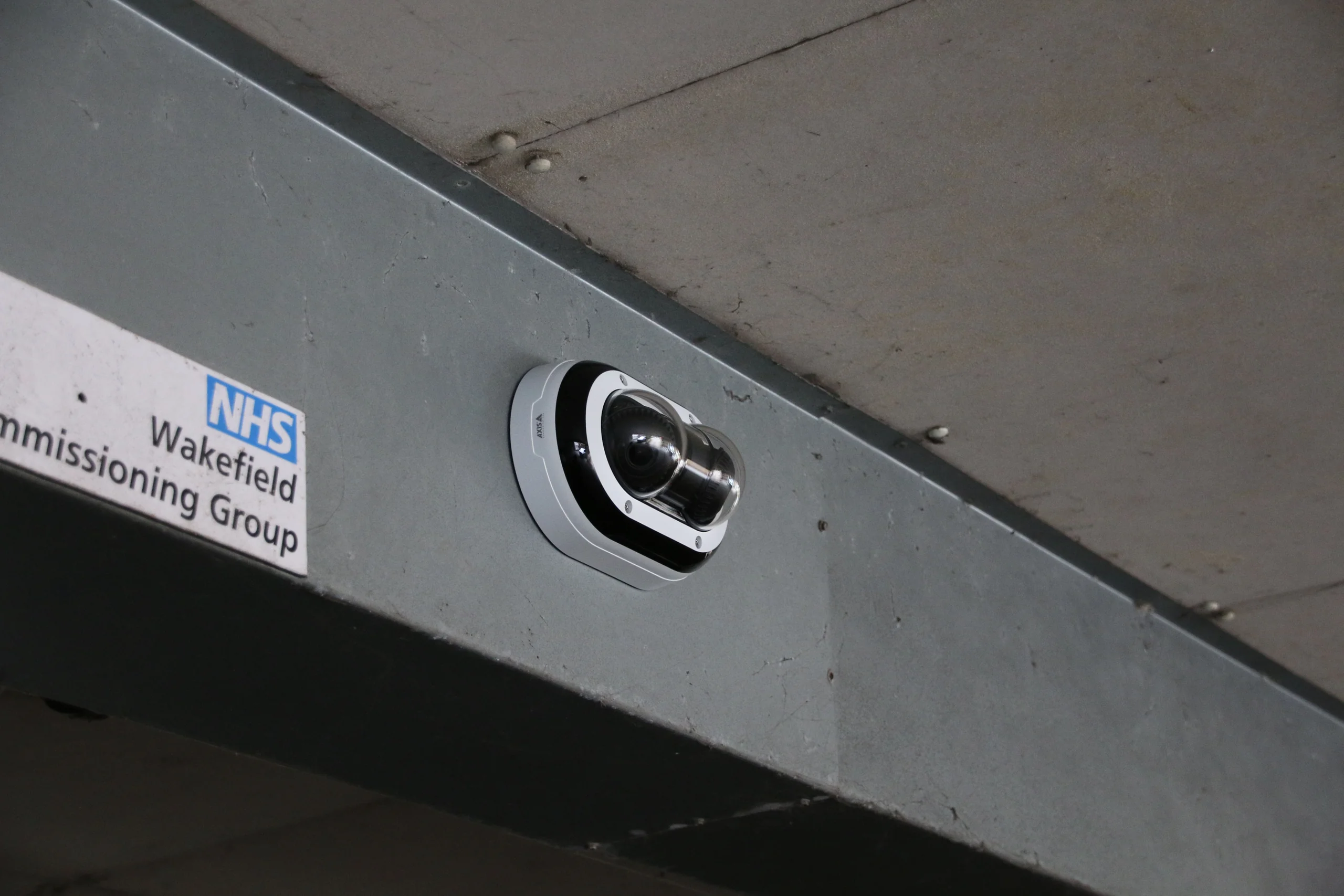

Axis cameras installed for deep-learning project

Intelligent Analytics

Deep-learning on every camera, staged deterrence on demand.

Axis Object Analytics — deep-learning processing that runs directly on each camera — anchors the system. We configured defined hotspots across the car park and vulnerable external zones, with differentiated dwell-time thresholds for each. When an individual remains in a zone beyond a short dwell time, the system issues a discreet first warning designed to alert operators without disturbing staff. If loitering continues or motion occurs in higher-risk hotspots, the response escalates automatically — triggering the integrated Axis D4100-VE Mk II strobe sirens in the car park. At 110 dB with a synchronised visual strobe, the effect is unambiguous, and the vast majority of individuals leave before any human intervention is required.

Active Deterrence

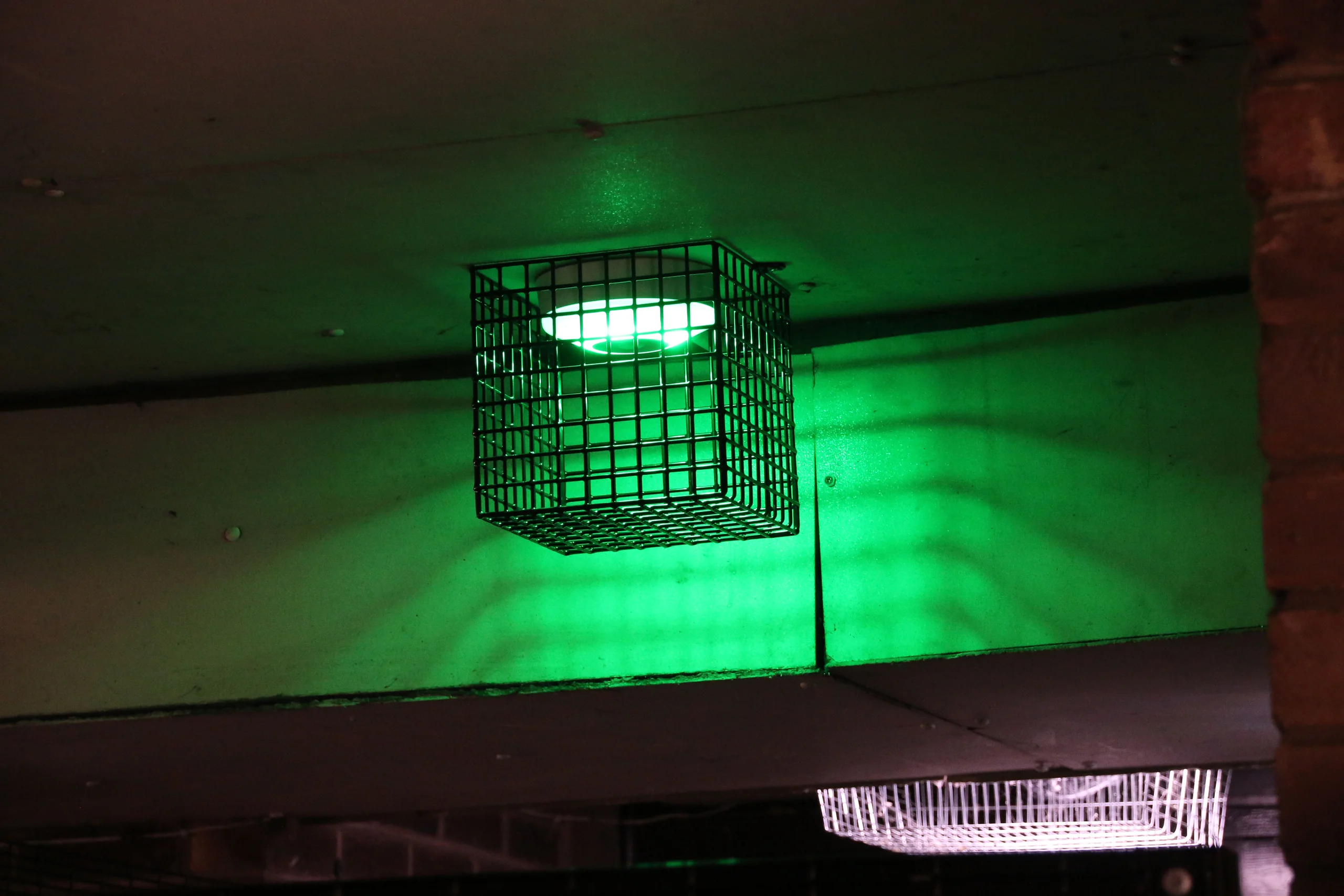

The Axis D4100-VE Mk II — 110 dB, synchronised strobe.

Where recording alone had failed, this device closes the loop. Triggered automatically by the on-camera analytics, the strobe siren makes the response to loitering unambiguous — and the vast majority of individuals leave before any human intervention is required.

The response stays proportionate. It begins calmly, then escalates only when needed — and runs automatically, without constant manual monitoring.

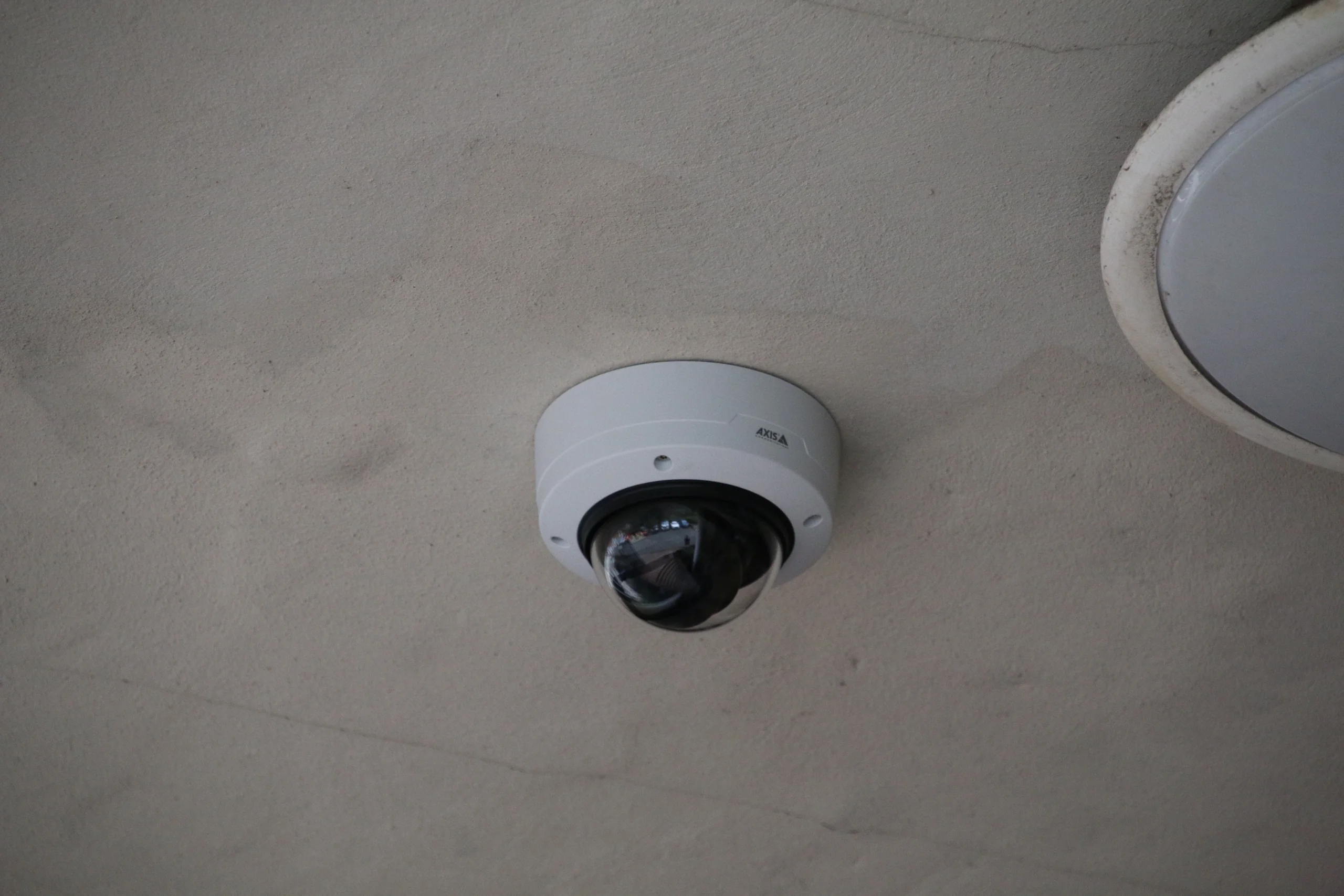

Axis CCTV equipment installed at White Rose House

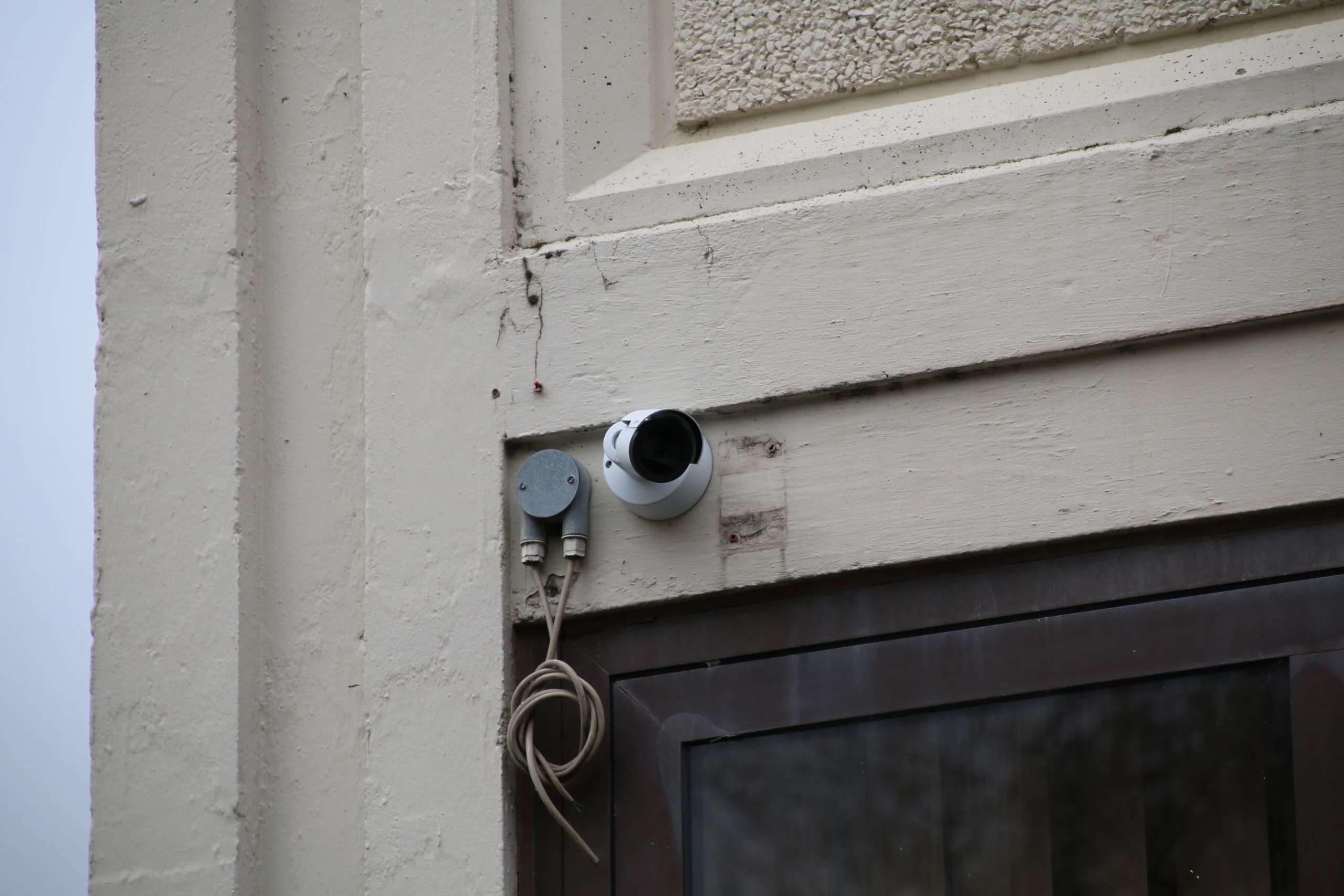

Completed CCTV installation at White Rose House

Axis Camera Station Pro

Operator-grade VMS with long-term resilience built in.

The system is managed end-to-end using Axis Camera Station Pro — intuitive live view, rapid smart-search incident review, and straightforward evidential export. Five-year licensing is included to underpin stability and reduce future support costs. The mission-critical recording server is backed by Dell ProSupport with Next Business Day response; the CCTV network runs on Aruba switching with a lifetime warranty.

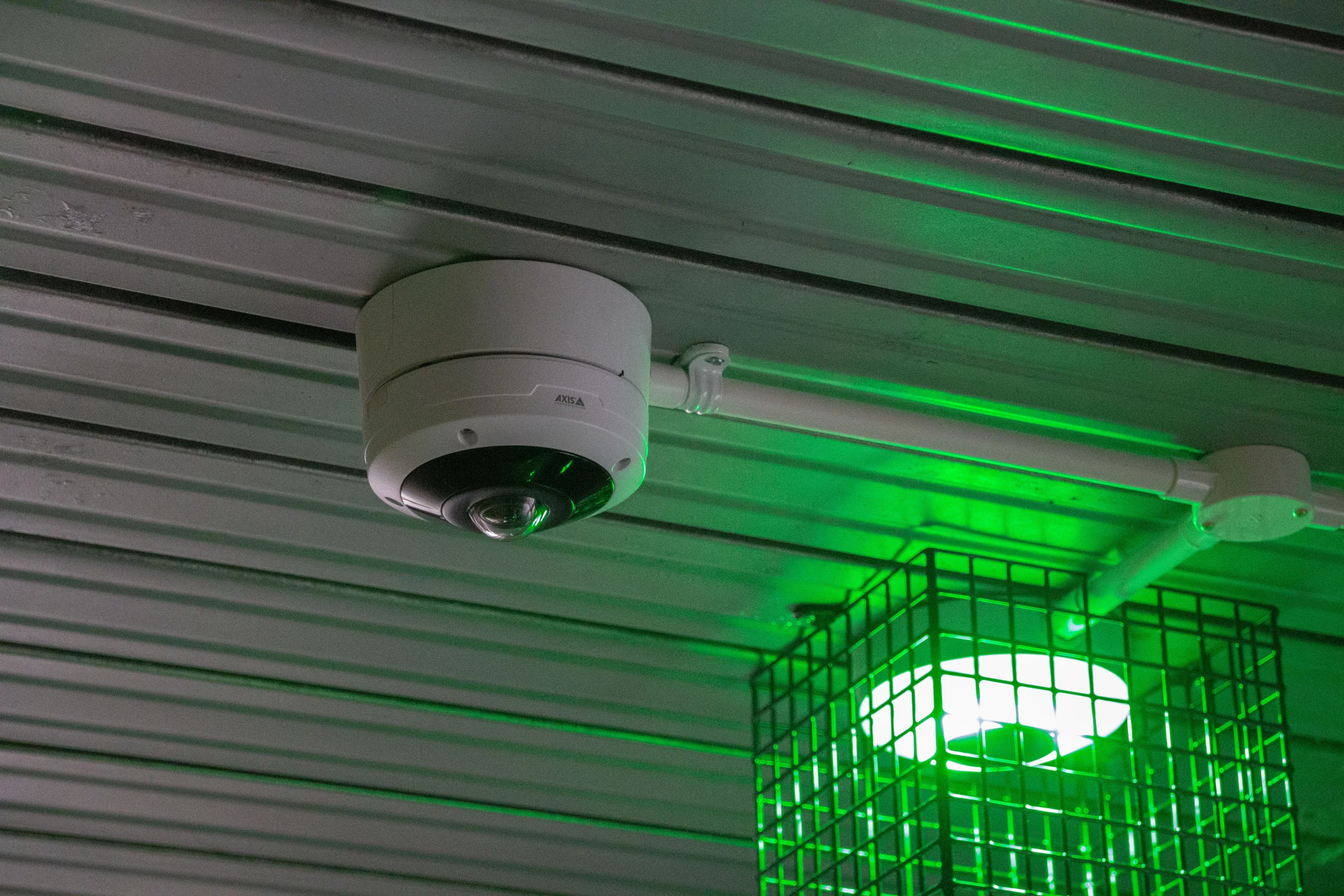

Deep-learning CCTV system deployment at NHS White Rose House

The Kit

Every device picked for its job.

Turret Dome

Axis M3125-LVE

General-purpose HD coverage — vandal-resistant and IK-rated for external positions.

360° Multidirectional

Axis M4317-PLVE

Wide-area situational awareness — one position, full coverage.

Bullet

Axis M2035-LE

Perimeter coverage with IR illumination for 24/7 image quality at the fence line.

Vandal Dome

Axis M3215-LVE

Hotspot and entry-point coverage — IK10 for public-facing areas.

Panoramic

Axis P4705-PLVE

Car-park coverage that cuts the camera count without cutting DORI performance.

Deterrence

Axis D4100-VE Mk II

Network strobe siren — 110 dB audible & synchronised visual strobe, triggered automatically by analytics.

Beyond Cameras

LED floodlighting restored night-time image quality.

As part of the wider improvements, Photuris also upgraded the site's dated and failing external lighting. Poor illumination had reduced both personal safety and CCTV effectiveness after dark. We installed new Lumineux LED floodlights across the car park and perimeter, raising light levels to a useful working minimum. Image clarity on the new IP cameras improved in step, and the environment became measurably safer for staff and visitors leaving after hours.

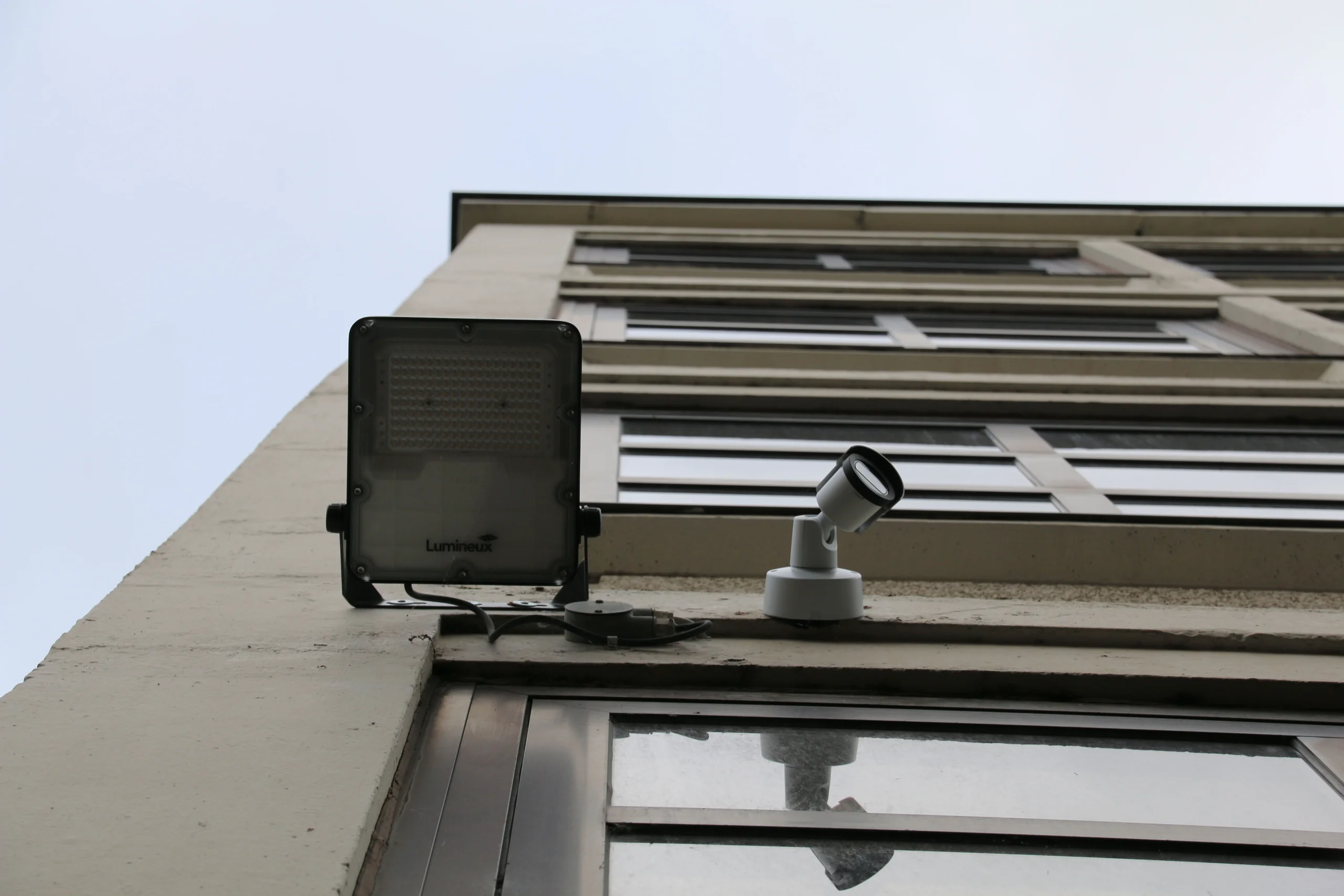

External lighting upgrade delivered by Photuris

Before / After

From patchy to workable, after dark.

Image clarity on the new IP cameras improved in step with the lighting uplift. Evening walks from the building to the car park now sit inside a consistent pool of light — measurably safer for staff and visitors leaving after hours, and materially better evidential footage when anything does need reviewing.

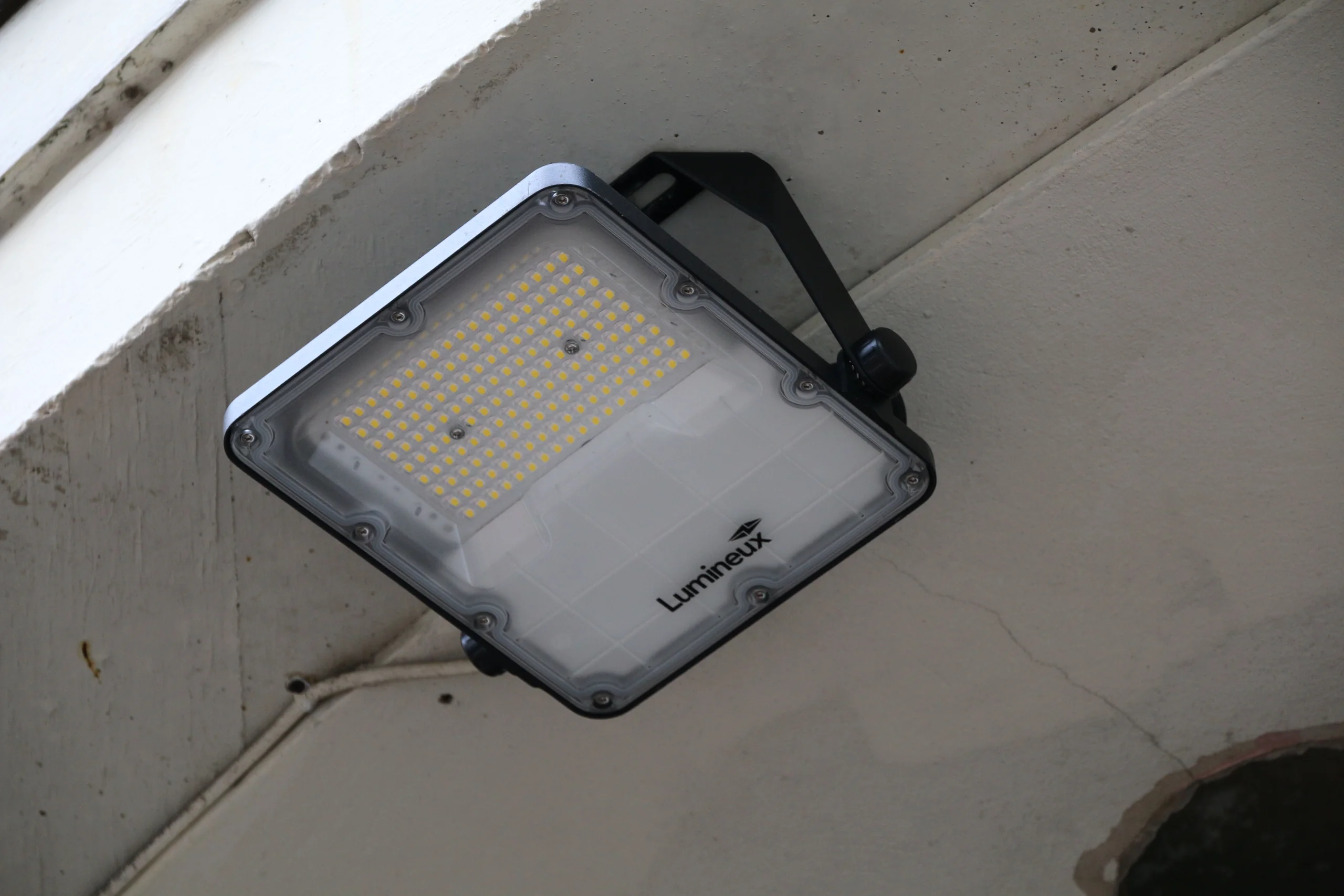

Lumineux LED floodlights installed at White Rose House

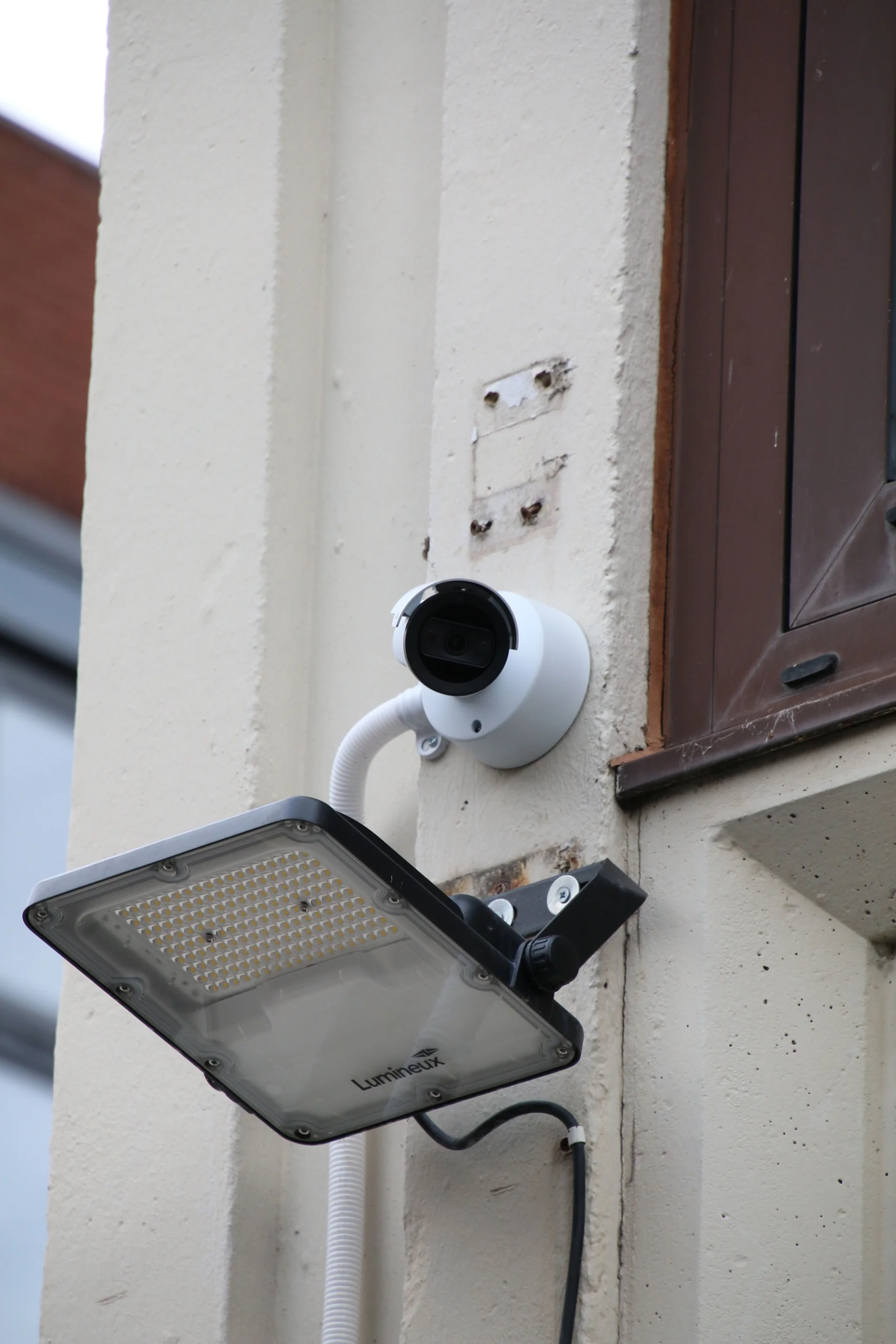

External lighting supporting turnkey CCTV with deep learning

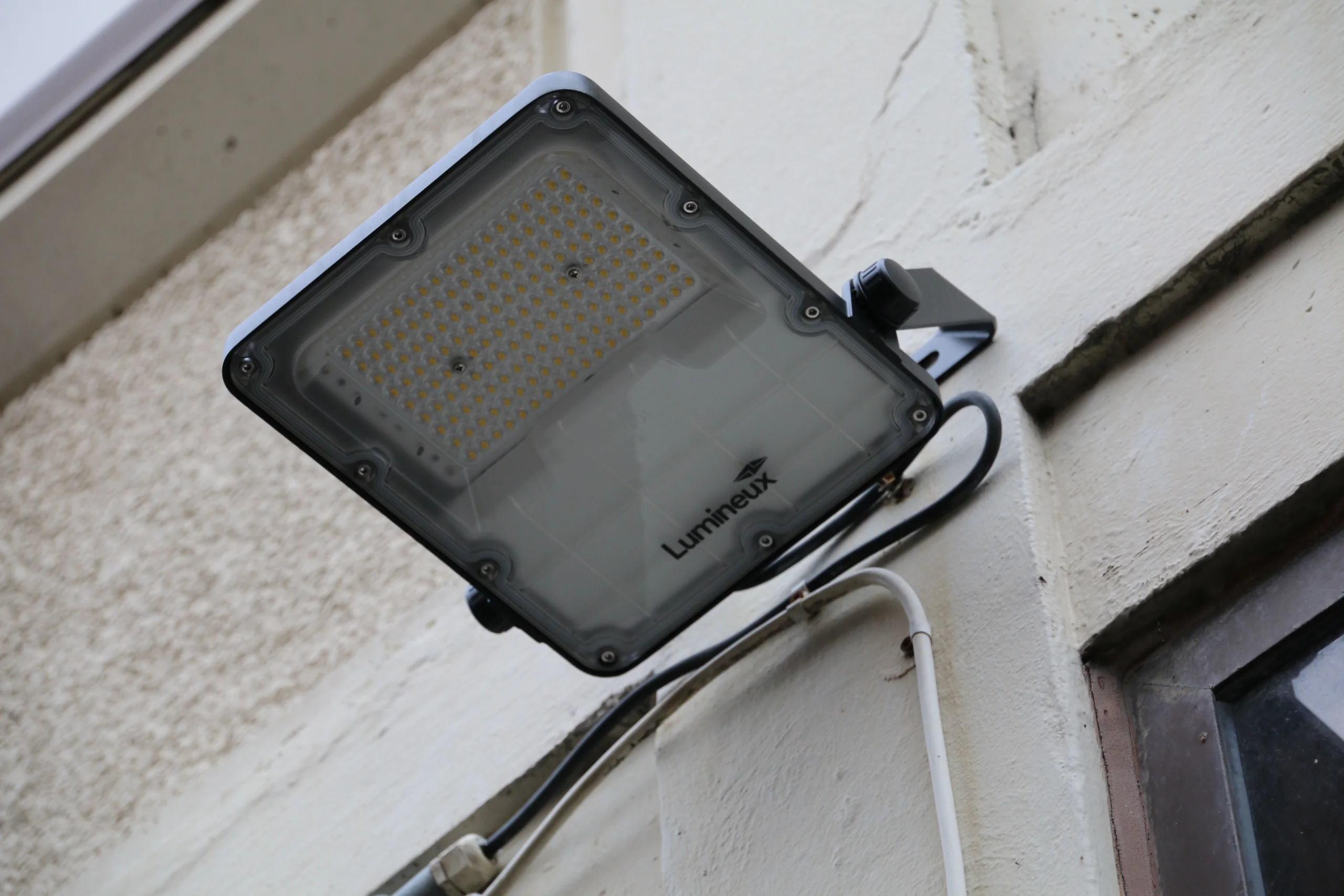

Improved car-park lighting for CCTV performance

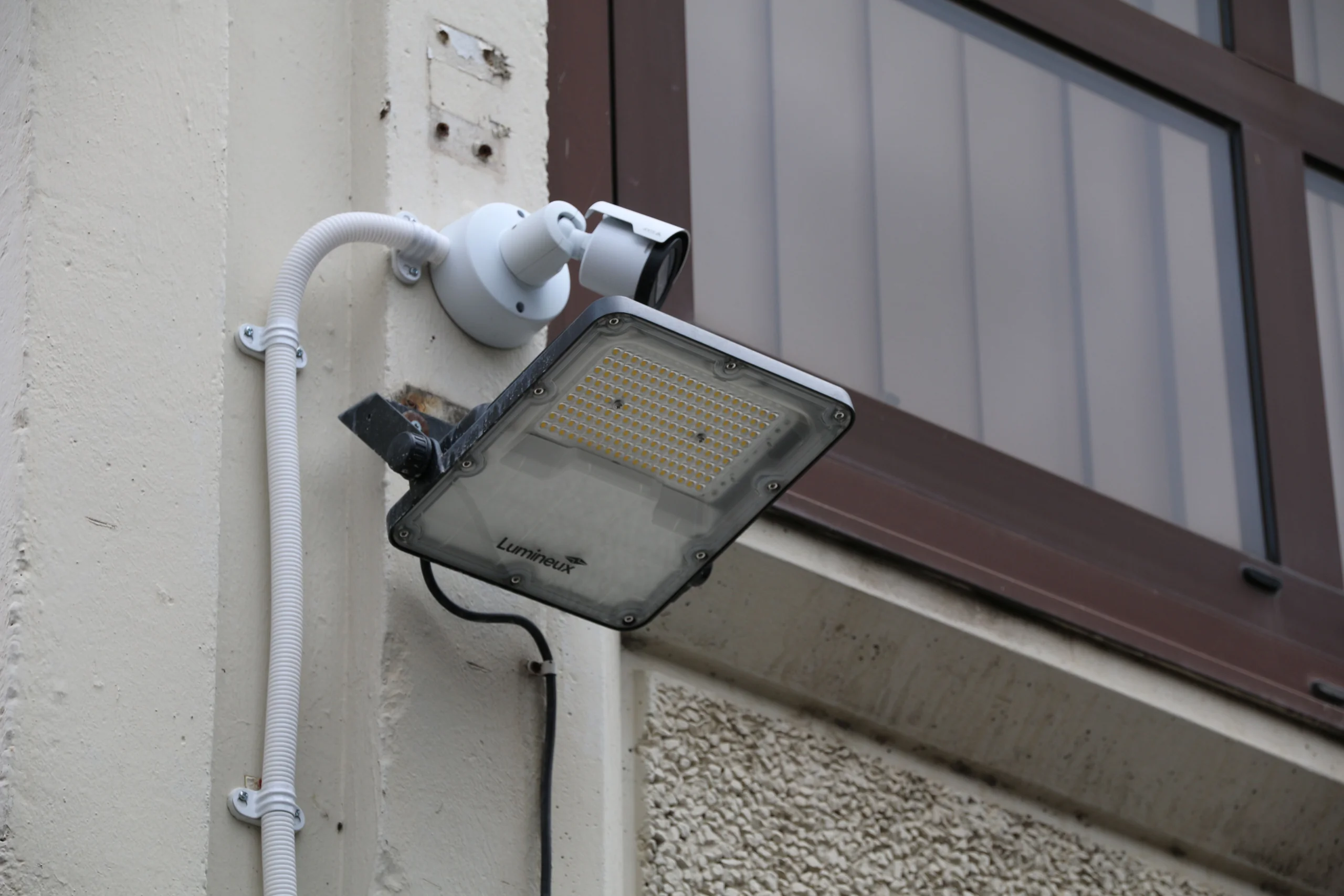

Upgraded perimeter lighting at NHS White Rose House

By the numbers

Axis camera types

110 dB

Strobe-siren deterrence

5 yr

VMS licence included

24/7

Recording & review

The outcome

Full HD coverage across every vulnerable external area, no persistent blind spots
Proactive management of loitering and hotspots before escalation is needed
Measurable reduction in antisocial behaviour in the car park
Greater confidence for staff and visitors, particularly after dark
GDPR-compliant, scalable platform ready for future estate expansion
Audit-ready commissioning records, aligned with Responsible Person duties
